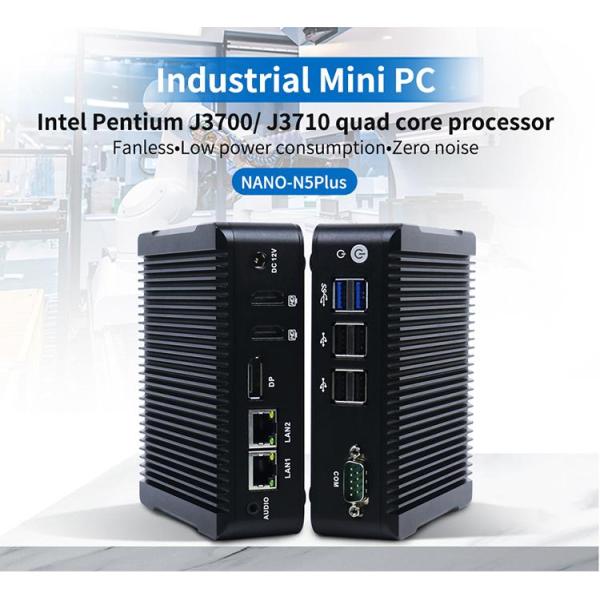

Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size

Brand Name : MTHGH

Model Number : Nano-N5 Plus

Place of Origin : China

Dimension : 134 * 126 * 38.5mm

Material : High-quality all aluminum,surface anodic oxidation

Storage : 1xMSATA，1x2.5” HDD

Network : 2x10/100/1000M RTL8111H 1000M LAN

Work Humidity : 5% ～ 95% non-condensing

Input Voltage : Support DC 12V input

Display Resolution : 4096x2160

Expansion Slot : 1*MINI PCIE Slot(Support MSATA),1*MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot

Processor Core : Quad Core

Front I/O : 1xPower Switch,2xUSB3.0,4xUSB2.0,1xRS232 COM

Rear I/O : 1*Audio(2 in 1),2*RJ45 LAN,1*DP,2*HDMI,1*DC Input

Processor Model : J3710

Weight : 0.7kg

RAM : Support 1xDDR3L 1600MHz SODIMM RAM Slot,Max. 8GB

Temperature : -20℃ -- +50℃

Display Port : 1xDP,2xHDMI(Support synchronous and asynchronous three display)

Certification : CE、CCC、FCC Class A、ROHS

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000 Set

Delivery Time : 7-10 work days

Packaging Details : Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

USB : 2*USB3.0，4*USB2.0

Processor Speed : 1.6GHz,Max turbo 2.64GHz

Contact Now

Nano-N5 Plus Industrial Mini PC Quad Core J3710 1XMSATA 2.5 HDD 2XUSB3.0
Product Overview

The Industrial Mini PC features a powerful J3710 processor capable of handling demanding applications. With 2x10/100/1000M RTL8111H 1000M LAN ports, it provides fast and stable network connectivity for industrial environments.

The fanless design ensures silent operation and minimal maintenance, making it ideal for noise-sensitive industrial settings where reliability and durability are crucial.
Key Features
  • Product name: Industrial Mini Computer
  • Certifications: CE, CCC, FCC Class A, ROHS
  • Input voltage: DC 12V input
  • Operating temperature: -20℃ to +50℃
  • Network: 2x10/100/1000M RTL8111H 1000M LAN
  • Color: Black (customizable)
  • Supported operating systems: Windows, Linux
Technical Specifications
Specification Details
Model N5 Plus
Color Black (Color can be customized)
Material High-quality all aluminum, surface anodic oxidation
Processor Intel Pentium J3710 (Quad core quad threading, 1.6GHz, Max turbo 2.64GHz)
RAM 1xDDR3L 1600MHz SODIMM RAM Slot, Max. 8GB
BIOS AMI UEFI BIOS
Display Port 1xDP, 2xHDMI (Support synchronous and asynchronous three display)
Max. Support Resolution: 4096x2160

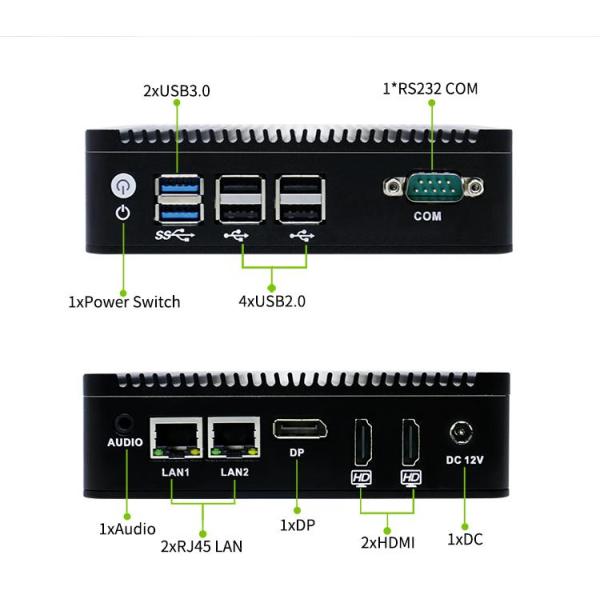

Front I/O 1xPower Switch, 2xUSB3.0, 4xUSB2.0, 1xRS232 COM
Rear I/O 1*Audio(2 in 1), 2*RJ45 LAN, 1*DP, 2*HDMI, 1*DC Input
Expansion Slot 1*MINI PCIE Slot (Support MSATA)
1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot
Storage 1xMSATA, 1x2.5" HDD
Input Voltage DC 12V Input
Other Functions Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog
Work Temperature 0℃ to +50℃ (Commercial HDD), -20℃ to +50℃ (Industrial SSD)
Work Humidity 5% to 95% non-condensing
Dimension 134 * 126 * 38.5mm
Net Weight 0.7kg
Applications

This versatile Industrial Mini PC is ideal for various industrial applications including:

  • Industrial Automation
  • Medical Equipment
  • Logistics Transportation
  • Warehouse Management
  • Electronic Education
  • Retail and Hospitality

The compact design and easy mounting capabilities make it perfect as an Industrial Touch Panel PC, while its robust construction ensures reliable operation in demanding environments with extreme temperature fluctuations.

Product Images
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
Nano-N5 Plus Industrial Mini PC with Quad Core J3710, Fanless Design, and Compact 134x126x38.5mm Size
